SBL 880 UL Panic Exit Device, Rim type, Single leaf door

Send Enquiry

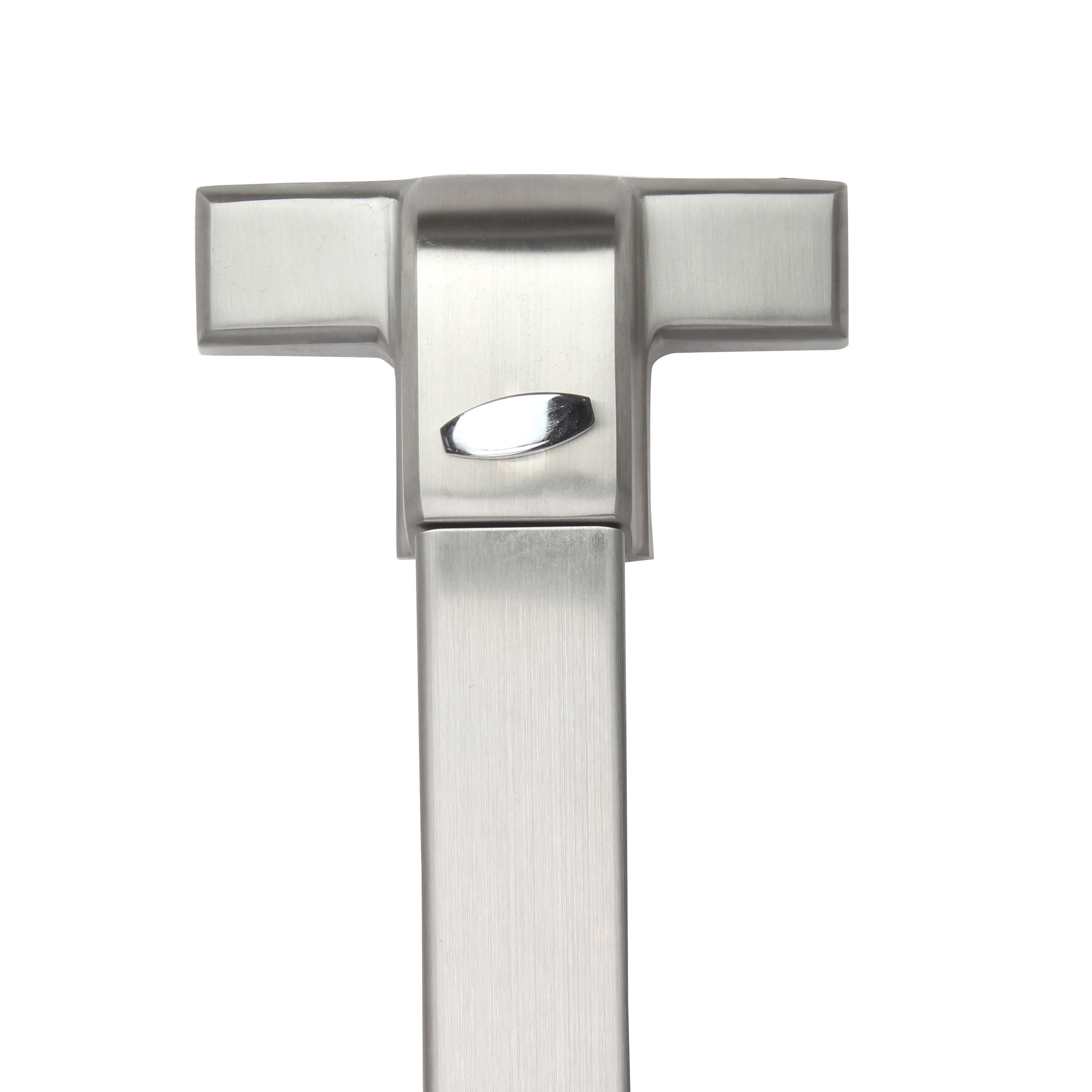

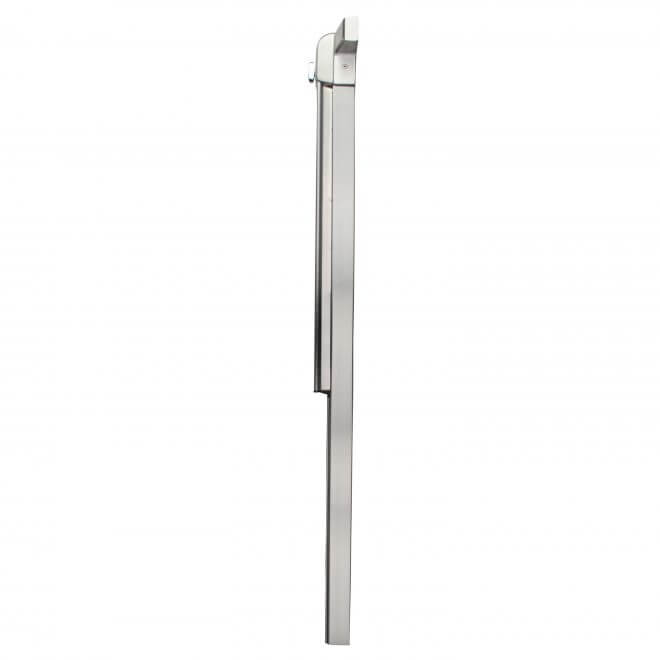

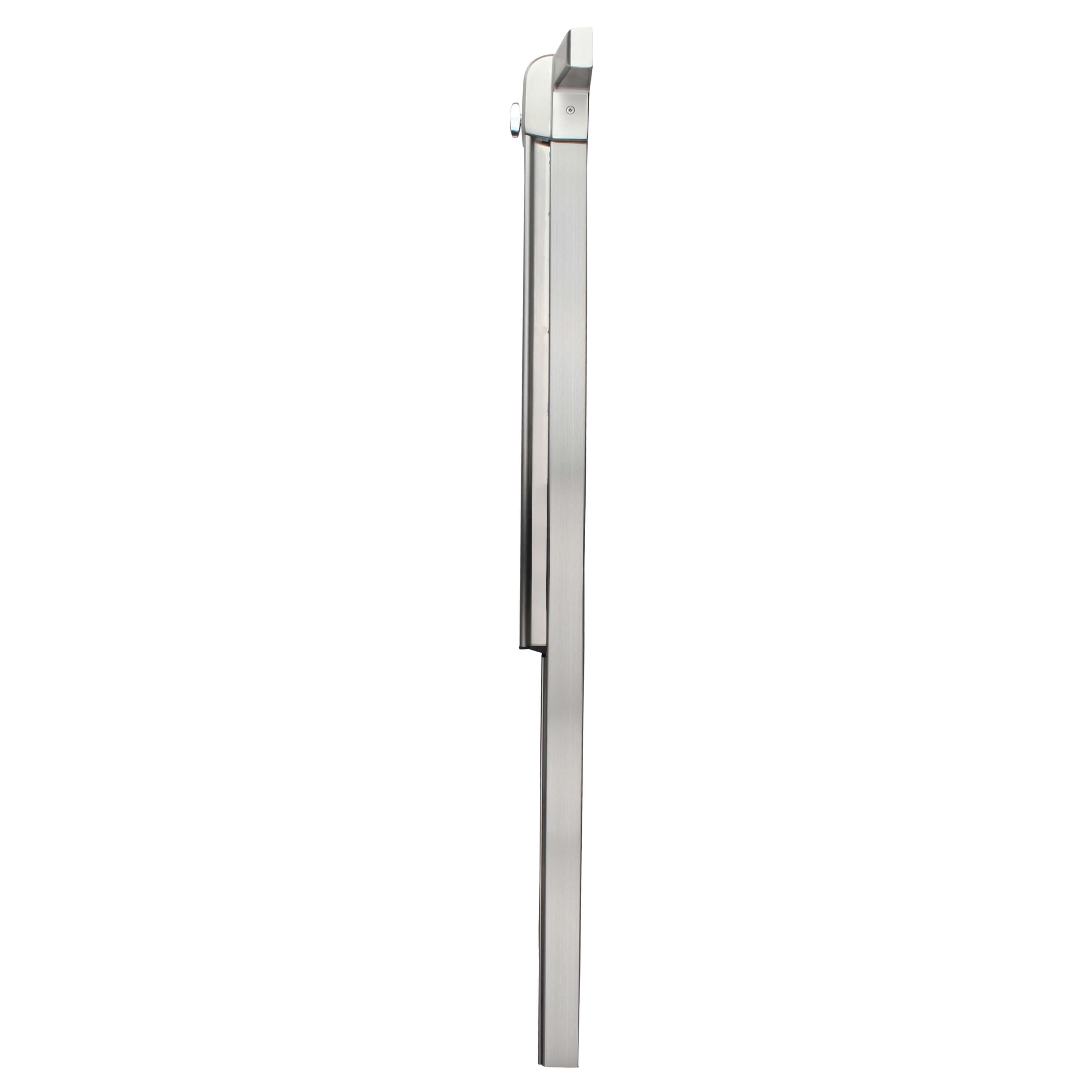

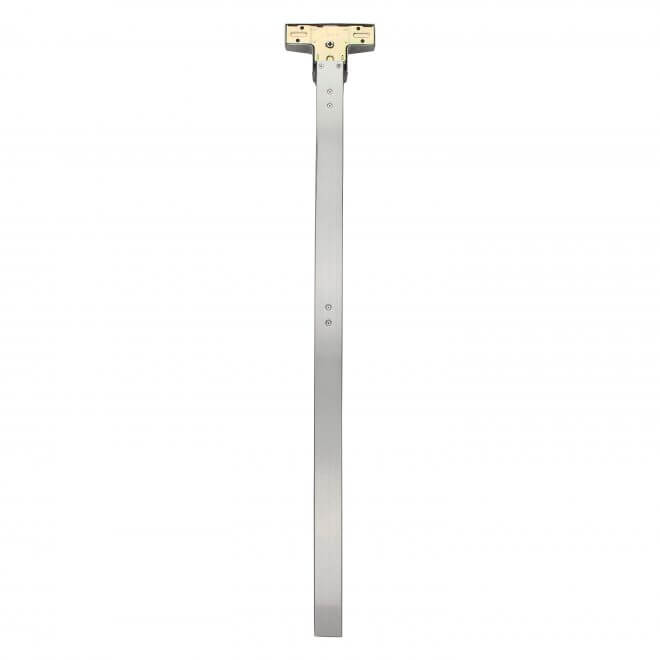

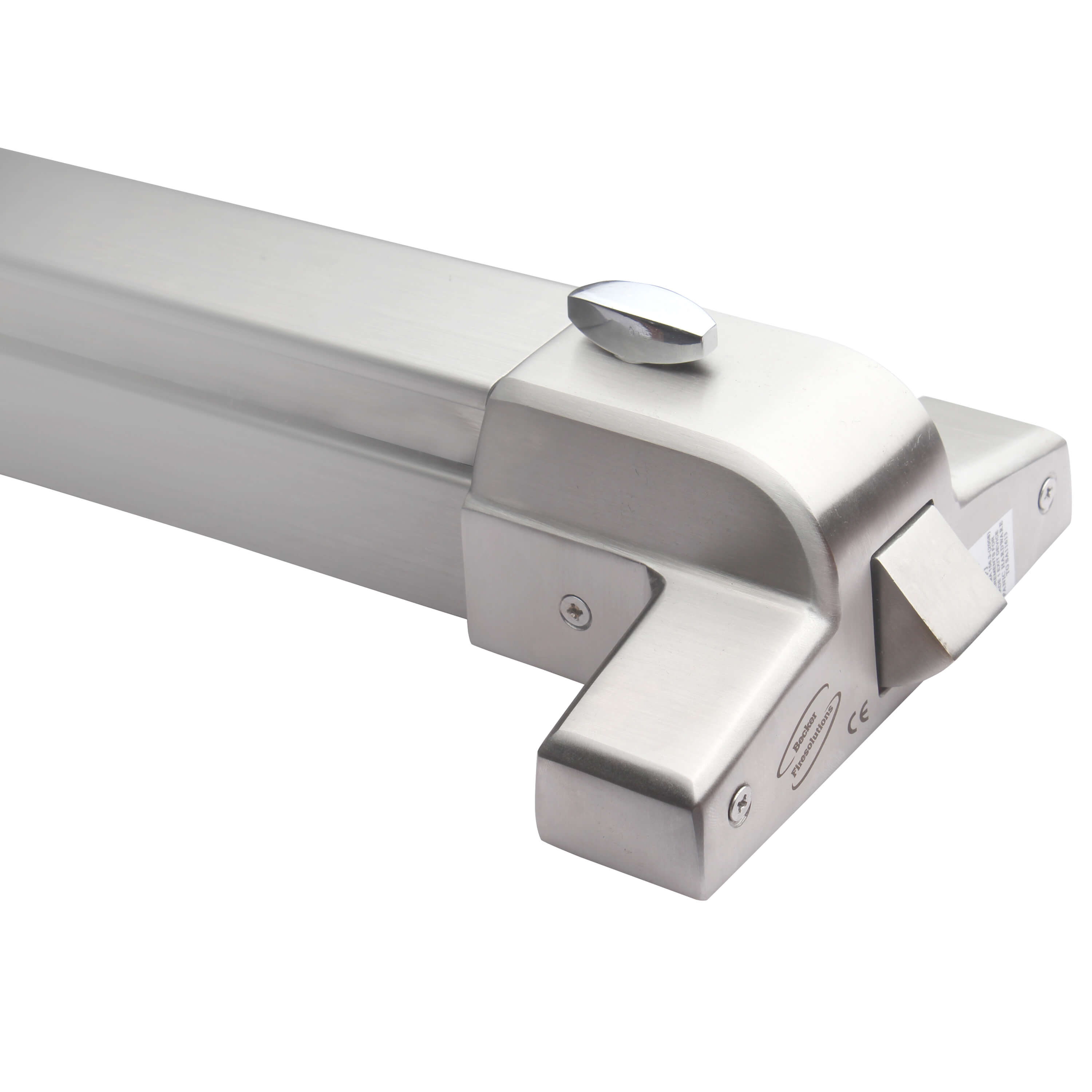

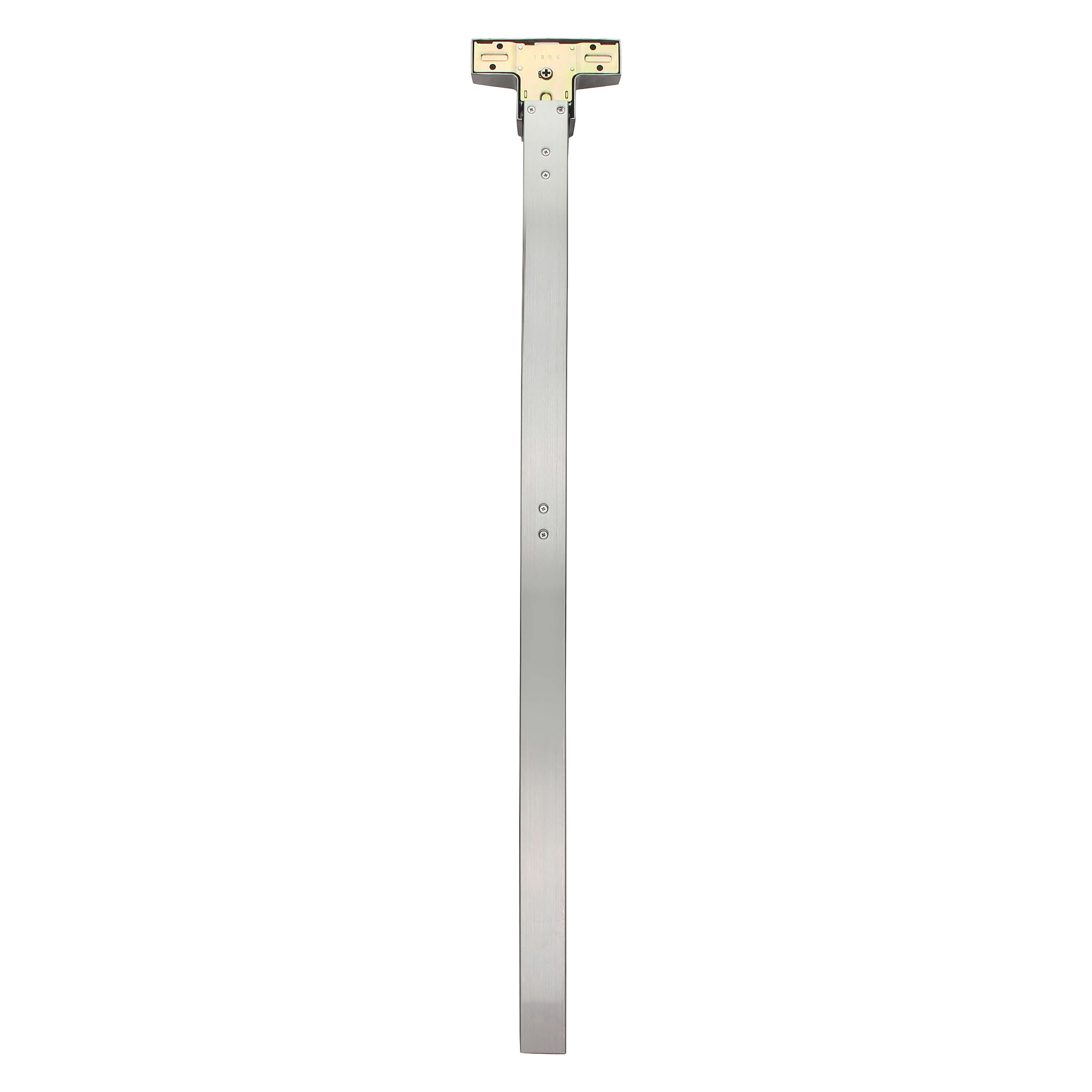

Panic Exit Device SBL 880

UL500 UL Panic Exit Device, Rim type, Single leaf door
Features of the SBL 880 Rim type Half-length Panic exit Device:
Features of the SBL 880 rim type full length panic exit device
“S” for stainless steel cover or “P” for galvanized steel cover.

• Type: Rim type ,Half-length or Full length
• Material : Heavy gauge steel or stainless steel 304 Grade

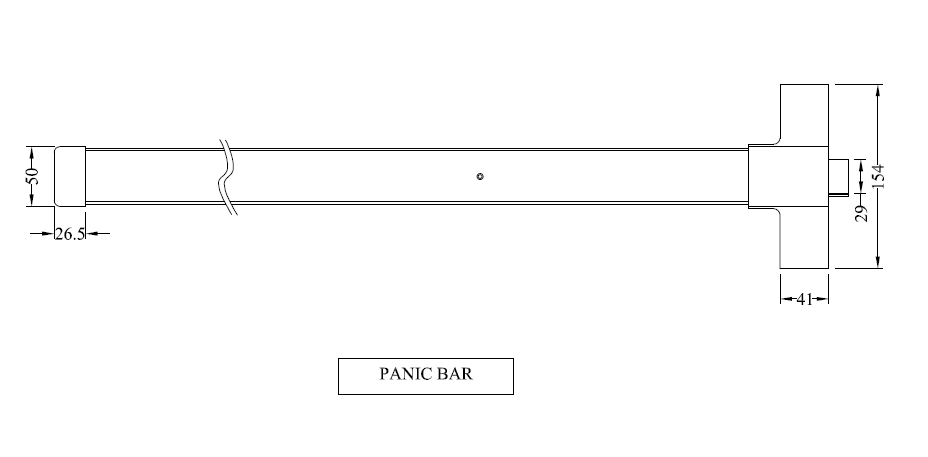

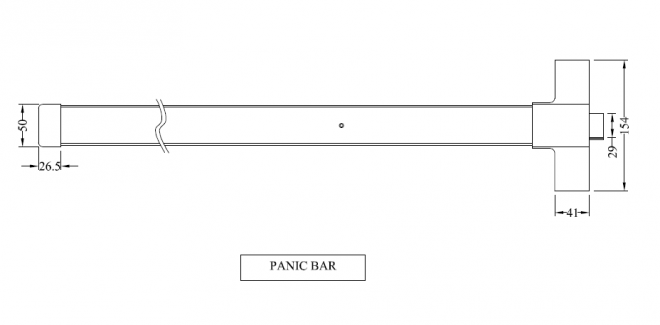

• Length: 1045MM as a standard , could be customized
• Color : Silver painted or stainless steel as a standard , could be customized
• Accommodates wood and metal doors with thru bolts standard
• Apply to door for fire protection, smoke ventilation.
• Apply to single leaf door
• Could be match with outside access device like cylinder, trim and lever
• Conforming to ANSI/BHMA standard A 156.3 Grade 1
• Open by handspike inside, and by key outside
• Endurance test, over 500,000 times still keep good performance
• Surface mounted for ease of installation
• Non fire rated device come standard with hex key dogging
• Dogging : Allen key
