Panic Exit Device

Panic Bar Touch type Double Point – BFS

SBL 885 UL Panic Exit Device Double door – with two vertical rod type exit devices.

Send Enquiry

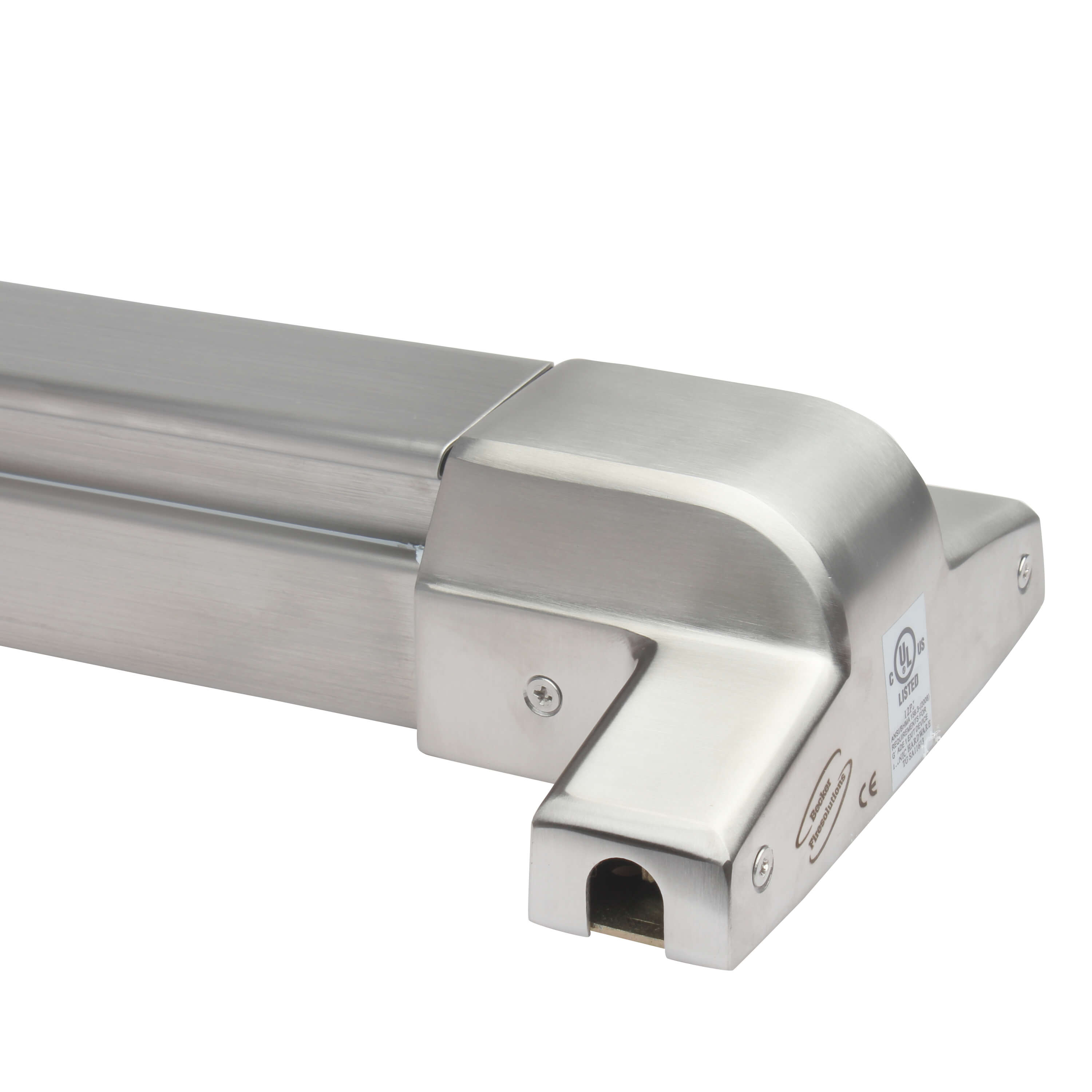

Panic Exit Device SBL 885
UL560 UL Panic Exit Device Double door – with two vertical rod type exit devices.
Features of the SBL 885 Rim type Half-length Panic Exit Device
Features of the SBL 885 Rim type Full-length Panic Exit Device
“S” for stainless steel cover or “P” for galvanized steel cover

• Type: Rim type, Half-length or Full length
• Material : Heavy gauge steel or stainless 304 Grade
• Color: Silver painted or stainless steel as a standard, could be customized
• Accommodates wood and metal doors with thru bolts standard
• Match with outside access device like cylinder, trim and lever

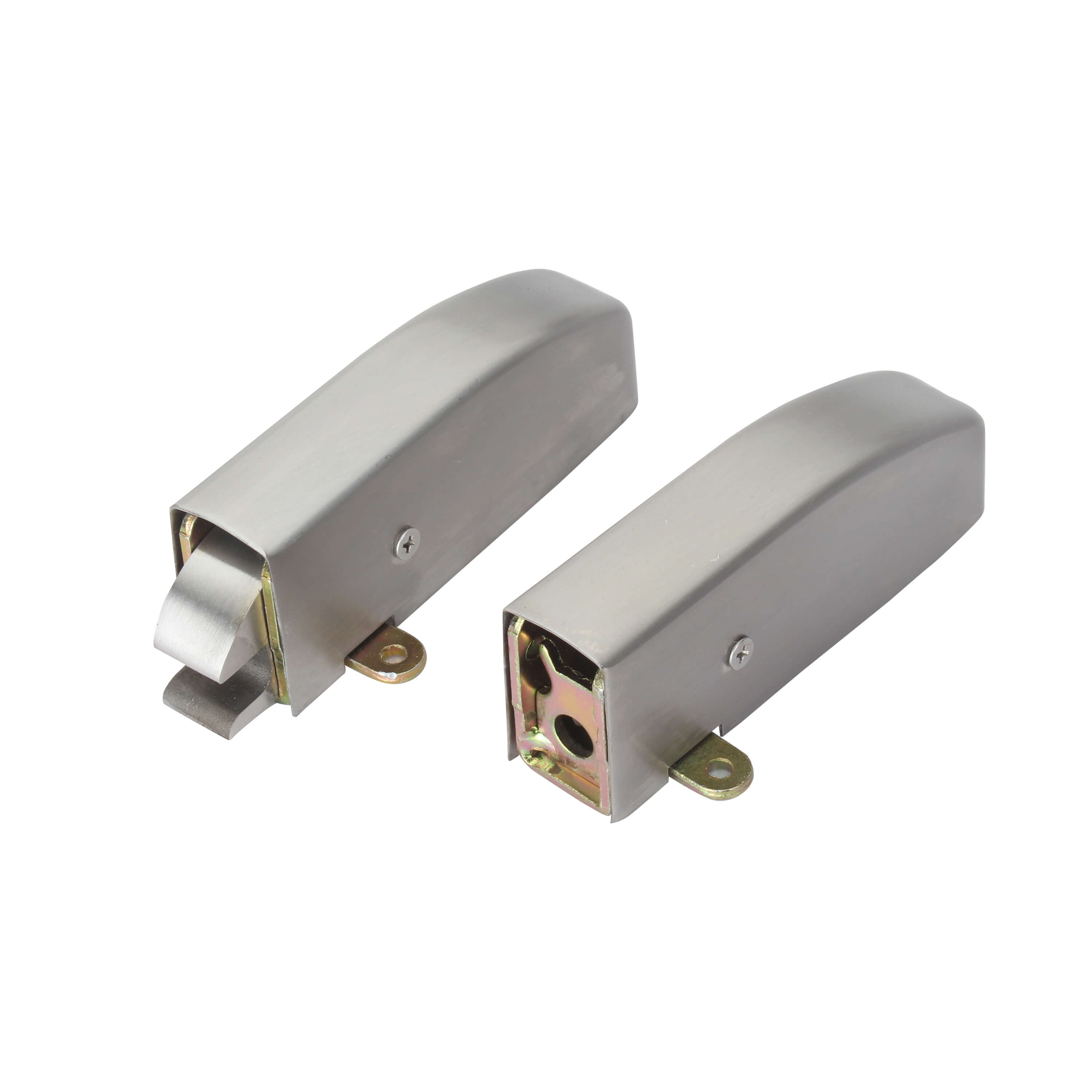

• Automatic top and bottom latches maintaining the bolt drawn in when the door is open
• Conforming to ANSI/BHMA standard A 156.3 Grade 1
• Endurance test, Over 500,000 times still keep good performance
• Surface mounted for ease of installation
• Door Height : 2100MM as standard, other door height can be customized

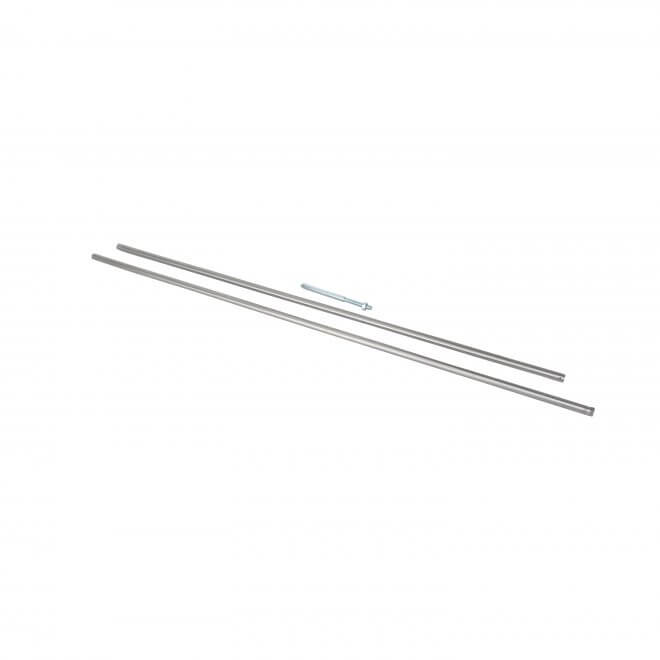

• Latch : No latch required in panic exit device, 2-point function by vertical rod
• Screw : Screw bolt, metal screw and wood screw
• Non fire rated devices come standard with hex key dogging
• Dogging : Allen key
