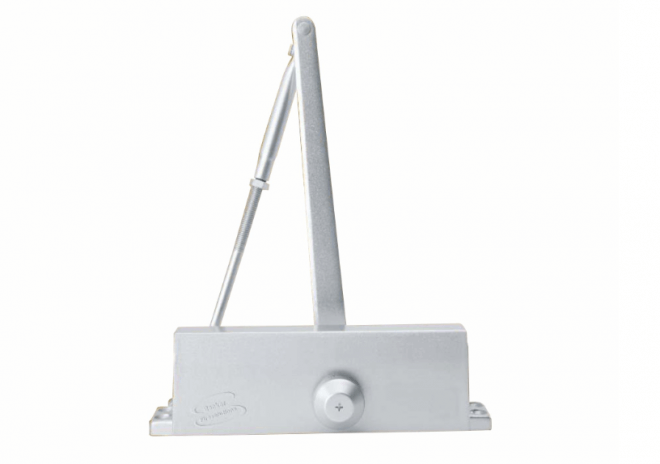

| Becker Fire Solution BLC 604 Series door Closer | |
| Salient Characteristics / Models | BLC 604 |
| Visual Features | |
| Install Type | Exposed |
| Retractable Covers in Options |  |
| Optional Colors Availability | Yes |
| Length of Door Closer Body (A) – mm | 223 |
| Width of Door Closer Body (B) – mm | 44.5 |
| Height of Door Closer Body (C) – mm | 72 |
| Vertical Mounting Provisions (D) – mm | 19 |
| Horizontal Mounting Provisions (E) – mm | 206 |
| Commercial Applications | |
| Residential Applications | |
| Application Range | Heavy Duty |
| Anti Freeze Additives | |
| Permissible Ambient Temperature – °C | -30 to 60 |
| Spring Power Adjustable | |
| Back Check Function | |
| Delayed Action | |
| Separate Valve for Closing Mechanism | |
| Separate Valve for Latching Mechanism | |
| Door Size / Weight Ratio | 60 – 85 Kgs |
| Dual Handed | |
| Suitable for Fire Doors | |
| Tested to Underwriters Laboratory (UL) | |
| Tested to British Standards (BS 476) | |
| Certified and CE Marked | |
| Tested & Certified to ANSI Standard 15604 | |
| Warranty Certification | 5,00,000 Cycles |
- Commercial & Residential use
- Ul listed (ul file number . R15839)
- CE Certification (0359-CPR-00071-02)
- Heavy Duty Rack and Pinion
- Two Separate Valves Adjustable Closing & Latching Speed
- Work Temperature – 30 Degree to 60 Degree
- Universal Application “ STANDARD TOP-JAMB, PARALLEL ARM INSTRUCTION”
- PA Bracket be provided upon request
